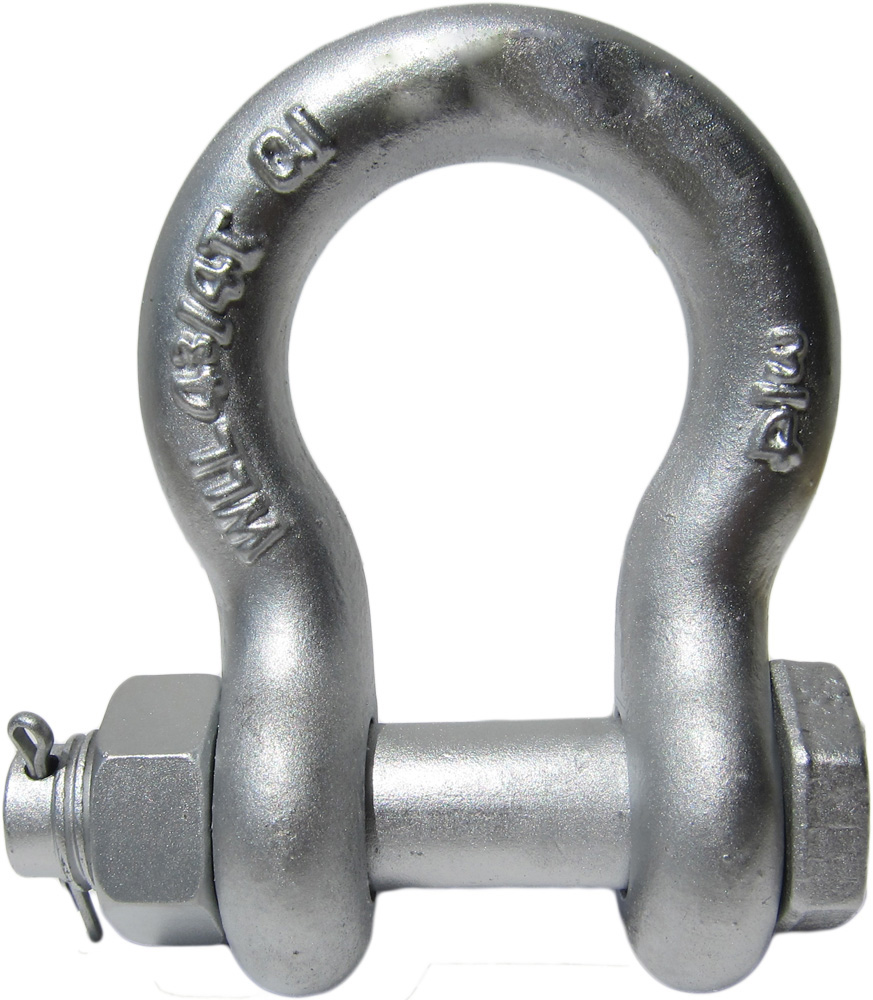

Galvanized Bolt Type Bow Shackle GYR163



                   Features and Advantages

                  1.Body and bolt are super alloy steel-quenched and tempered

                    2.Breakage test will be done strictly for each batch product

                    3.100% magnaflux crack detection

                    4.Permitted useful temperature range.-40-200

                    5.According to standard:RR-C271D,Type IVA class 3 Grade B,SS-EN-13889+A1-2008

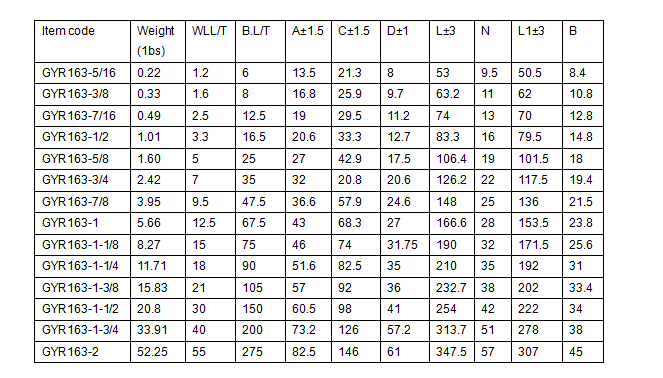

                    Specification





                    Ultimate load is 5 times of the working load limit
