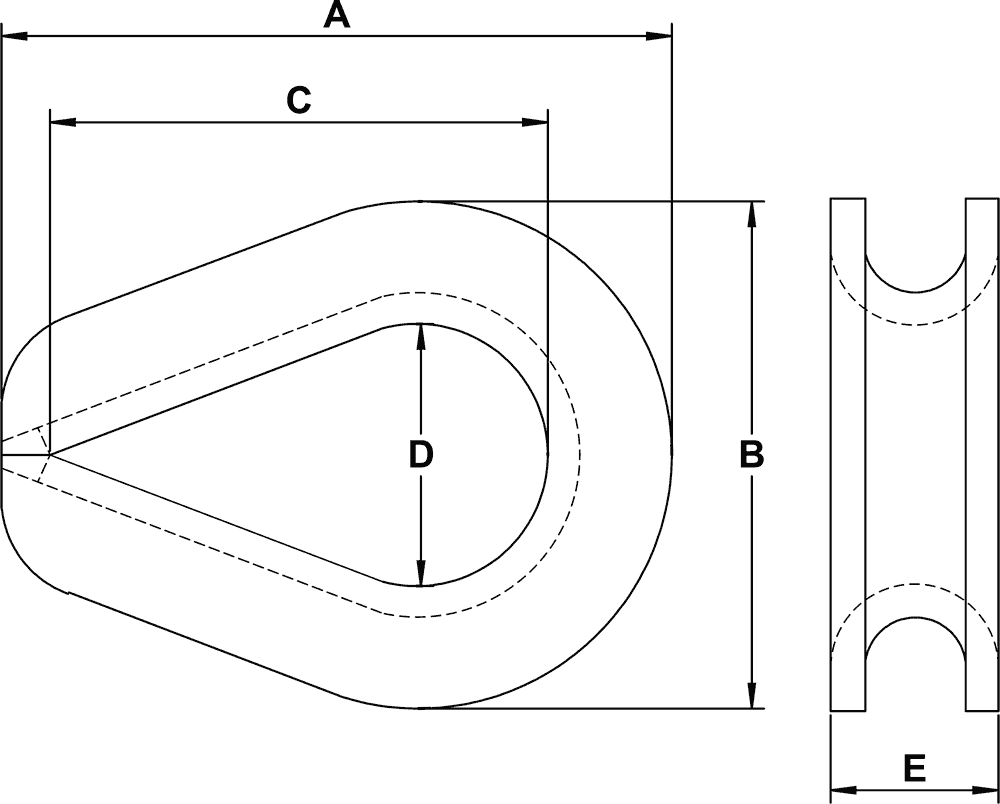

| Size | Weight(lbs) | A | B | C | D | E |
| 1/4 | 0.075 | 2.19 | 1.5 | 1.63 | 0.88 | 0.41 |
| 5/16 | 0.14 | 2.5 | 1.81 | 1.88 | 1.06 | 0.5 |
| 3/8 | 0.25 | 2.88 | 2.13 | 2.13 | 1.13 | 0.66 |
| 7/16 | 0.36 | 3.25 | 2.25 | 2.38 | 1.25 | 0.75 |
| 1/2 | 0.51 | 3.63 | 2.56 | 2.75 | 1.5 | 0.84 |
| 9/16 | 0.51 | 3.63 | 2.56 | 2.75 | 1.5 | 0.84 |
| 5/8 | 0.75 | 4.25 | 3 | 3.25 | 1.75 | 1 |
| 3/4 | 1.47 | 5 | 3.5 | 3.75 | 2 | 1.25 |
| 7/8 | 1.85 | 5.5 | 4 | 4.25 | 2.25 | 1.38 |
| 1 | 3 | 6.13 | 4.38 | 4.5 | 2.5 | 1.56 |
| 1-1/8-1-1/4 | 3.8 | 7 | 5.63 | 5.13 | 2.88 | 1.88 |
| 1-1/4-1-3/8 | 8.6 | 9.06 | 6.75 | 6.5 | 3.5 | 2.25 |
| 1-3/8-1-1/2 | 11 | 9.06 | 7 | 6.5 | 3.5 | 2.63 |
