Features
1.Superior Strength and Excellent Corrosion Resistance
2.Used with Marine Environments, Dredging, Excavating, and Logging
3.Mooring Lines, Winch Lines, and Skylines
Brief Description

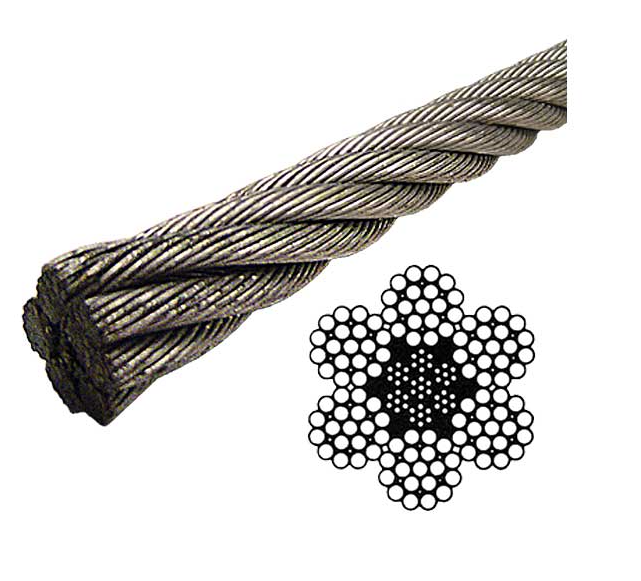

1.The 6x19 class galvanized wire offers an added protection against corrosion.
2.It's 6x25 construction makes it more flexible than a 6x19 wire rope without sacrificing strength or durability.
3.The 6x25 offers the best combination of flexibility and wear resistance of the 6x19 class.
4.We also carry coils of wire rope in 5000' lengths.
Specification
|
Diameter |
Steel Grade |
Core |
Class |
Material |
Quantity |
Weight |
Break Strength |
|
3/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
0.26lbs |
15100lbs |
|
7/16” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
0.35lbs |
20400lbs |
|
1/2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
0.46lbs |
26600lbs |
|
9/16” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
0.59lbs |
33600lbs |
|
5/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
0.72lbs |
41200lbs |
|
3/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
1.04lbs |
58800lbs |
|
7/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
1.42lbs |
79600lbs |
|
1” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
1.85lbs |
103400lbs |
|
1-1/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
2.34lbs |
130000lbs |
|
1-1/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
2.89lbs |
159800lbs |
|
1-1/2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Galvanized Steel |
Ordered in lineal feet |
4.16lbs |
228000lbs |
|
2-1/2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
Bright Steel |
Ordered in lineal feet |
11.6lbs |
604000lbs |
