Features
1.Moderate Strength, Excellent Corrosion Resistance (Sea Water)
2.Marine Environments, Dredging, Excavating, and Logging
3.Mooring Lines, Highway Use, Heavy Duty Guard Rail
Brief Description
1.Stainless steel wire rope, sometimes called corrosion resistant, is generally used in applications
that may degrade a bright wire or galvanized wire rope.

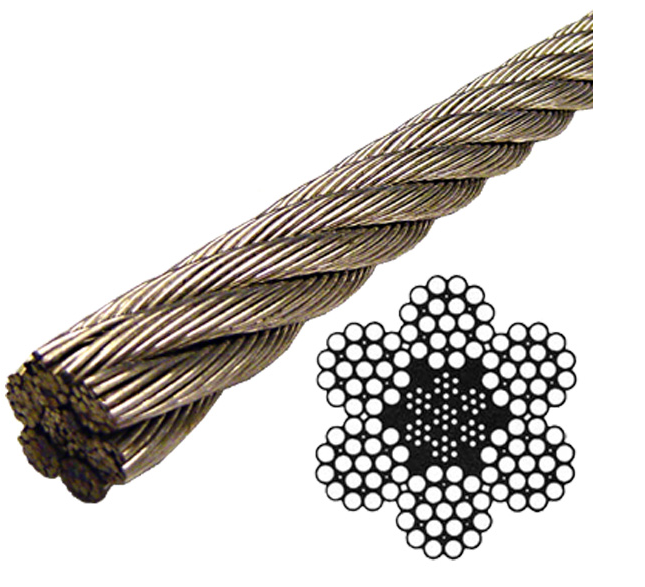

2.The 6x19 Class wire rope is the most common class due to its good combination of flexibility and
resistance to wear-and-tear.
3.This diversity makes this wire rope suited for many different kinds of machinery or equipment.
Specification
|
Diameter |
Steel Grade |
Core |
Class |
Material |
Quantity |
Weight |
Break Strength |
|
7/16” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
T304 Stainless Steel |
Ordered in lineal feet |
0.356lbs |
16300lbs |
|
1/2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
T304 Stainless Steel |
Ordered in lineal feet |
0.46lbs |
22800lbs |
|
5/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
T304 Stainless Steel |
Ordered in lineal feet |
0.72lbs |
35000lbs |
|
3/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
T304 Stainless Steel |
Ordered in lineal feet |
1.04lbs |
49600lbs |
|
7/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
T304 Stainless Steel |
Ordered in lineal feet |
1.42lbs |
66500lbs |
|
1” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x19 |
T304 Stainless Steel |
Ordered in lineal feet |
1.85lbs |
85400lbs |
