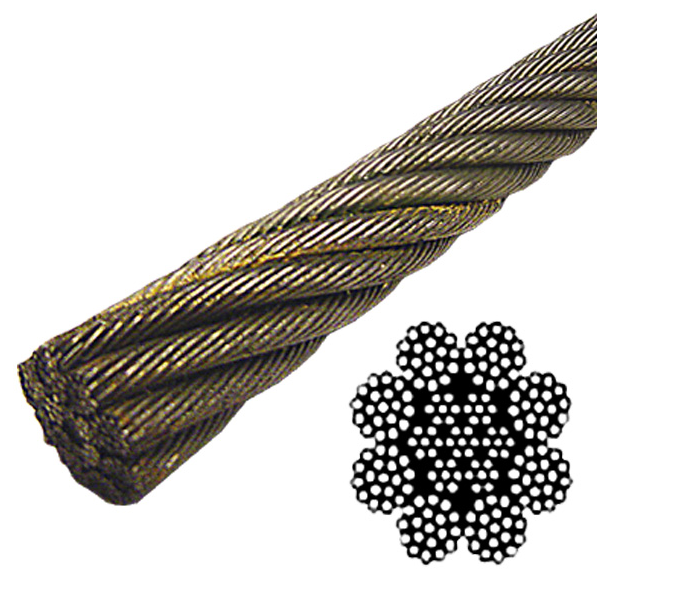

Bright Wire Rope EIPS IWRC 8x19(Rotation/spin Resistant)

 Features

 1.Rotation/Spin Resistant, Superior Strength, Abrasion Resistant

 2.Used with Cranes, Dredging, Excavating, Logging, Oil, and Marine

 3.Crane Hoist Lines and Crane Auxiliary Lines

 Brief Description

 1.The 8x19 Spin Resistant Bright Wire Rope has an actual configuration of 8x25.

 2.The rotation resistant rope has the inner strands spun around the core in the opposite direction as the outer strands to help keep the cable from rotating while under a load.

 3.These wire ropes are slightly stronger and much more rugged than the 19x7 spin resistant wire rope and are recommended for hoisting unguided loads with a single-part or multi-part line

 4.While being more durable than the 19x7, the 8x19 wire rope has inferior rotation resistant properties.

 5.For a full line of wire rope and other rigging hardware.



 Specification

Diameter

Steel Grade

Core

Class

Material

Quantity

Weight

Break Strength

3/8”

Extra Improved Plowed  Steel (EIPS)

(IWRC)

8x19

Bright Steel

Ordered  in lineal  feet

0.26lbs

13200lbs

1/2”

Extra Improved Plowed  Steel (EIPS)

(IWRC)

8x19

Bright Steel

Ordered  in lineal  feet

0.47lbs

23200lbs

9/16”

Extra Improved Plowed  Steel (EIPS)

(IWRC)

8x19

Bright Steel

Ordered  in lineal  feet

0.60lbs

29400lbs

5/8”

Extra Improved Plowed  Steel (EIPS)

(IWRC)

8x19

Bright Steel

Ordered  in lineal  feet

0.73lbs

36200lbs

3/4”

Extra Improved Plowed  Steel (EIPS)

(IWRC)

8x19

Bright Steel

Ordered  in lineal  feet

1.06lbs

51800lbs

7/8”

Extra Improved Plowed  Steel (EIPS)

(IWRC)

8x19

Bright Steel

Ordered  in lineal  feet

1.44lbs

70000lbs
