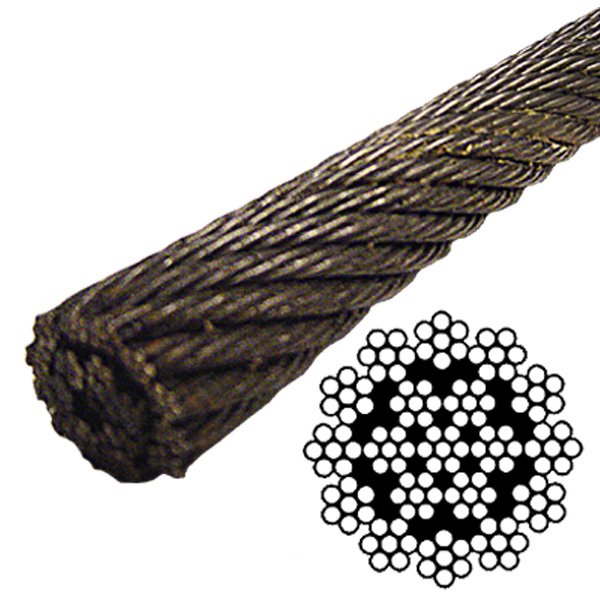

Bright Wire Rope EIPS IWRC 19x7(Rotation Resistant)(Linear foot)

 Features

 1.Superior Flexibility, Rotation/Spin Resistant, Superior Strength, Abrasion Resistant

 2.Used with Cranes, Dredging, Excavating, Logging, Oil, and Marine

 3.Crane Hoist Lines and Crane Auxiliary Lines

 Brief Description

 1.The 19x7 Spin Resistant Bright Wire Rope the inner strands spun around the core in the opposite direction as the outer strands to help keep the cable from rotating while under a load.

 2.These wire ropes are laid so the inner strands counteract the outer strands rotation and are recommended for hoisting unguided loads with a single-part line

 3.While being less durable than the 8x25, the 19x7 (sometimes called 7x19) wire rope has superior rotation resistant properties.

 4.For a full line of wire rope and other rigging hardware.



Specification

Diameter
Steel Grade
Core Class Material Quantity Weight Break Strength
1/4 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 0.113 lbs 5540lbs
5/16 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 0.177 lbs  8600lbs
3/8 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 0.26lbs 12300lbs
7/16 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 0.35lbs 16660lbs
1/2 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 0.45lbs 21600lbs
9/16 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 0.58lbs 27200lbs
5/8 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 0.71lbs 33600lbs
3/4 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 1.02lbs 48000lbs
7/8 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 1.39lbs 65000lbs
1 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 1.82lbs 84400lbs
1-1/8 Extra Improved Plowed
Steel (EIPS)
Wire Strand Structure  19x7 Bright Steel Orderedin lineal feet 2.30lbs 106200lbs
