Features
1.Excellent Abrasion Resistance, Very Durable
2.Used with Oil Well Drilling
3.Drill Line for Cable Drilling Rigs and Rotary Drill Rigs
Brief Description

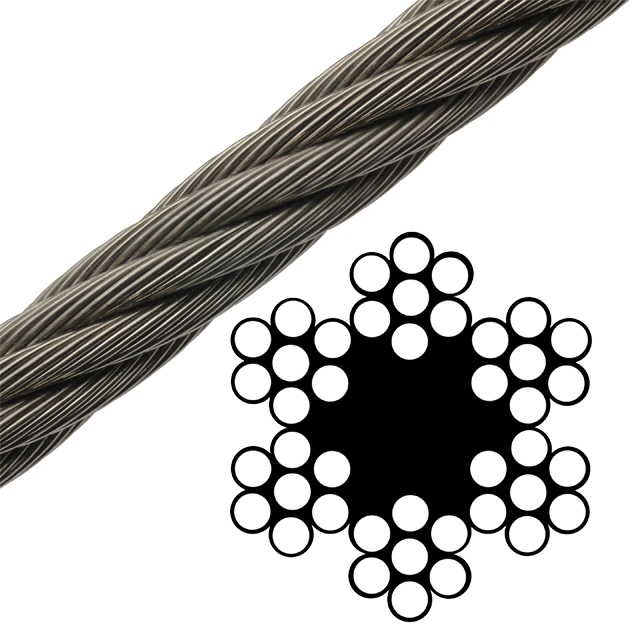

1.The fiber core 6 x 7 construction features larger wires than many other wire rope classes.
2.Offers excellent resistance to abrasion, resistant to kinking; spools evenly.
3.Ideal for sand and swabbing lines, so it's also sometimes referred to as sand line wire rope.
Specification
|
Diameter |
Steel Grade |
Core |
Class |
Material |
Quantity |
Weight |
Break Strength |
|
5/16” |
Extra Improved Plowed Steel (EIPS) |
Fiber |
6x7 |
Bright Steel |
Ordered in lineal feet |
0.15lbs |
8200lbs |
|
3/8” |
Extra Improved Plowed Steel (EIPS) |
Fiber |
6x7 |
Bright Steel |
Ordered in lineal feet |
0.21 lbs |
11720lbs |
|
7/16” |
Extra Improved Plowed Steel (EIPS) |
Fiber |
6x7 |
Bright Steel |
Ordered in lineal feet |
0.29lbs |
15680lbs |
|
1/2” |
Extra Improved Plowed Steel (EIPS) |
Fiber |
6x7 |
Bright Steel |
Ordered in lineal feet |
0.38lbs |
20600lbs |
|
9/16” |
Extra Improved Plowed Steel (EIPS) |
Fiber |
6x7 |
Bright Steel |
Ordered in lineal feet |
0.48lbs |
26000lbs |
|
5/8” |
Extra Improved Plowed Steel (EIPS) |
Fiber |
6x7 |
Bright Steel |
Ordered in lineal feet |
0.59lbs |
31800lbs |
