Application Scope
This tamping rammer is mainly used in the road construction and maintenance, It's intended to be used in confined areas, next to structures such as foundations, walls and curbs as well as compacting the municipal, airports, harbors and stations roadbed. Paving the soil backfilled to underground water pipe and electrical & gas pipe. Our tamping rammer is equipped with four-stroke cycle engine guarantees power, therefore, it is facilitate to operate and the quality is stable. The integrated transmission system composed of crankshaft and link lever enhances the stability, effective wallop can be guaranteed. The corrugated pipe was imported with good quality. the front-mounted air filter can make the ram plate work in its maximum capacity condition.

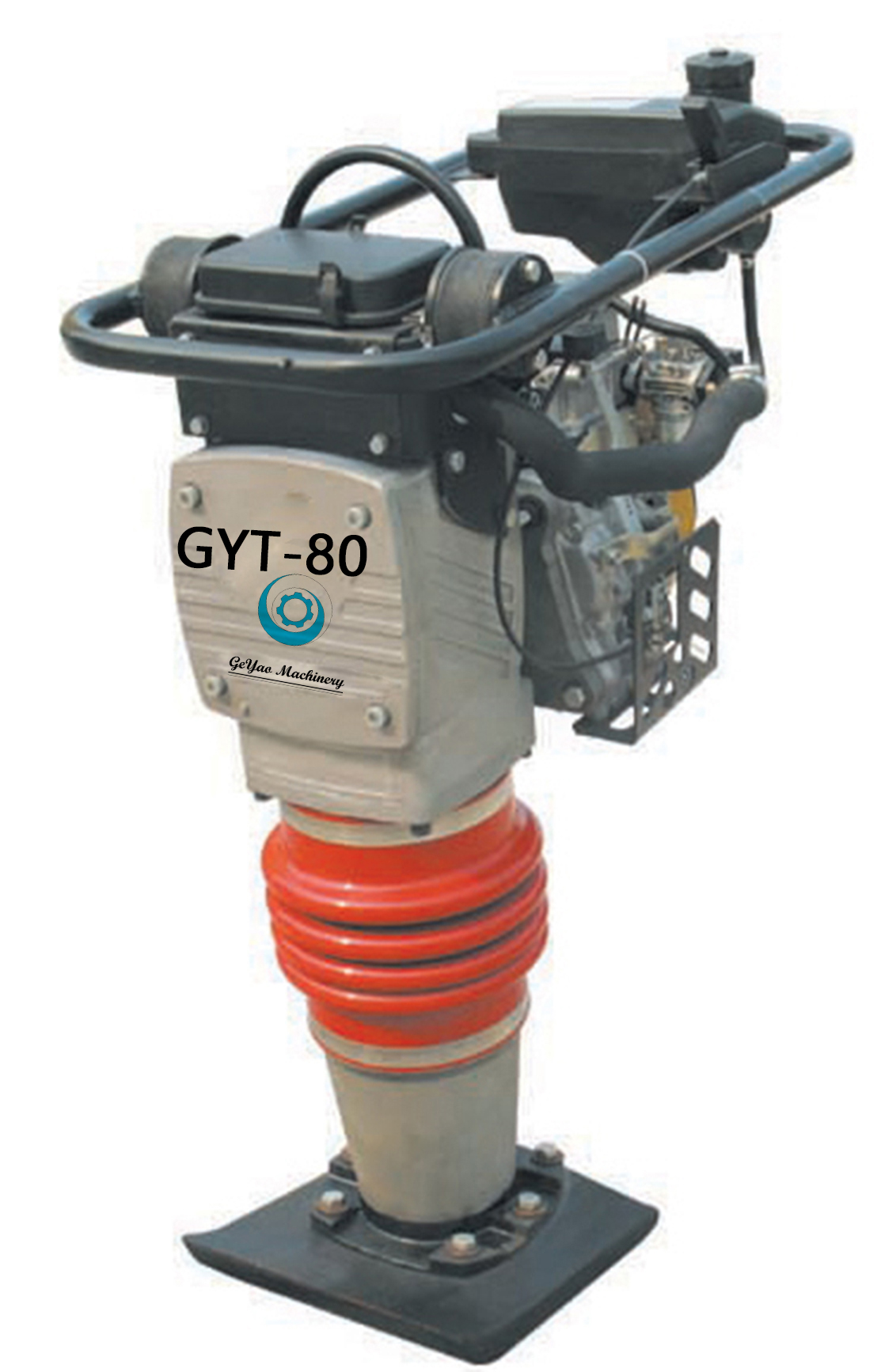

Model GYT-80 Engine EH12 4.0P Impacting Stroke(mm) 66 Impacting Force(KN) 18.0 Max Battering Frequency(time/min) 650 Efficiency(㎡/h) 260 Rotating Speed(rpm) 4300 Impacting plate size(L*W)(mm) 330*280 Overall Dimension(L*W*H)(mm) 700*380*1060 Shipping Size(L*W*H)(mm) 780*420*1060 Operating Weight(kg) 80 Shipping Weight(kg) 87
