Application Scope
Plate compactor series are made of high quality steel,artificial design,facility operation,is widely applied to municipal conservation,road construction,building construction,flooring treatment, strengthen cohesive force between particles and less friction materials.
1.such as river sand,soil,gravel,asphalt surface of the whole compacting.
2.Ditches,concrete perimeter sidewalk all kinds of backfill compaction
3.Reservoir,dam slope surface solidify.
Features and Advantages
1.The unique design configuration applied to the impact-excitation barrel enhances the service life of the compactor effectively.
2.Small plate compactor with simple structure ,it is convenient to operate.
Specification

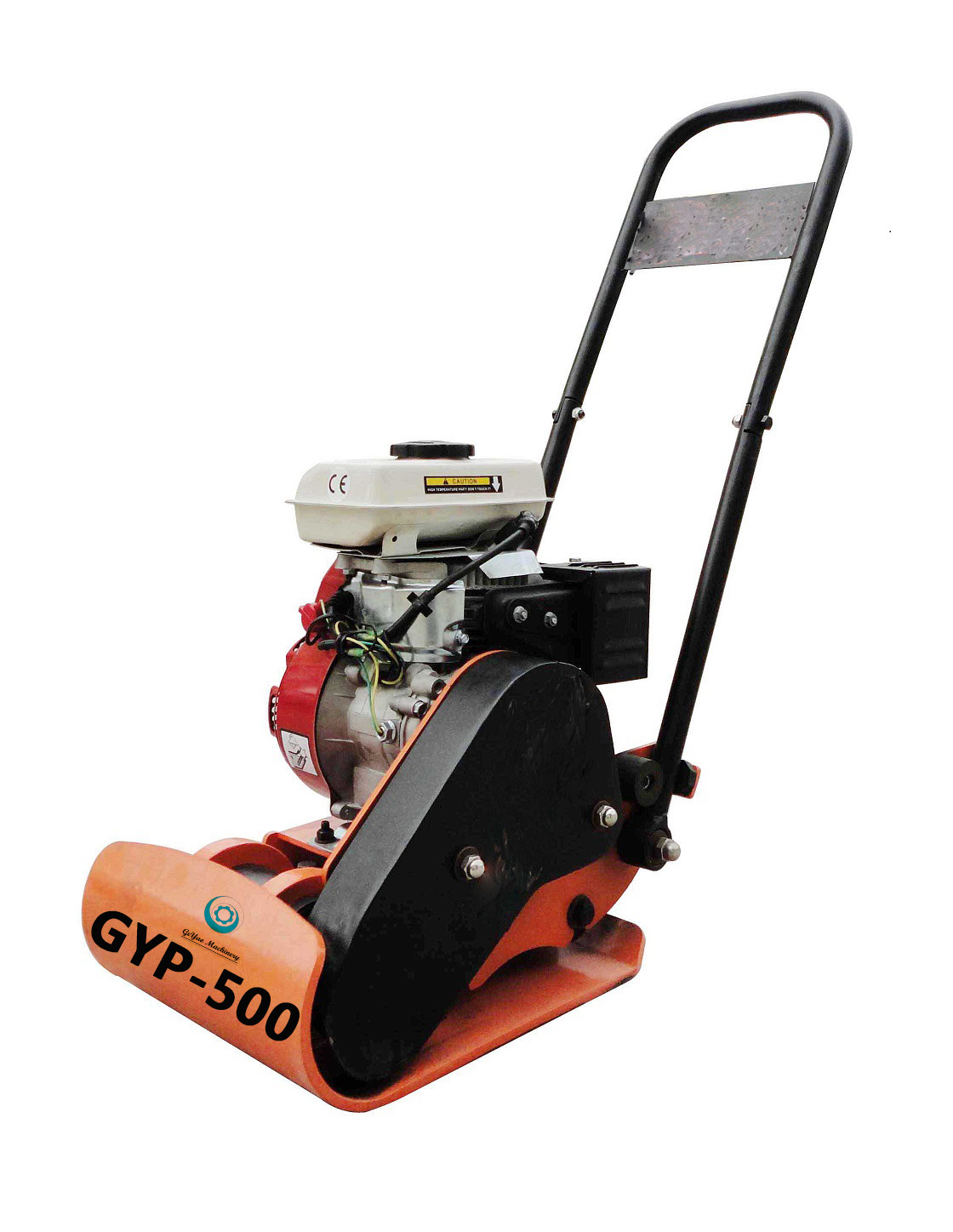

Model GYP-500 Engine model Loncin 2.5HP Frequency(Hz) 85(5100) Exciting force(KN) 8.5 Speed(m/min) 12-14 Tamping plate width(mm) 300 Handle height(mm) 770 Overall Dimension(L*W*H)(mm) 800*300*770 Shipping size(L*W*H)(mm) 850*350*780 Operating weight(kg) 43 Shipping weight(kg) 45
