Application Scope
Plate compactor series are made of high quality steel,artificial design,facility operation,is widely applied to municipal conservation,road construction,building construction,flooring treatment, strengthen cohesive force between particles and less friction materials.
1.such as river sand,soil,gravel,asphalt surface of the whole compacting.
2.Ditches,concrete perimeter sidewalk all kinds of backfill compaction
3.Reservoir,dam slope surface solidify.
Features and Advantages
1.The unique design configuration applied to the impact-excitation barrel enhances the service life of the compactor effectively.
2.Small plate compactor with simple structure ,it is convenient to operate.
Specification

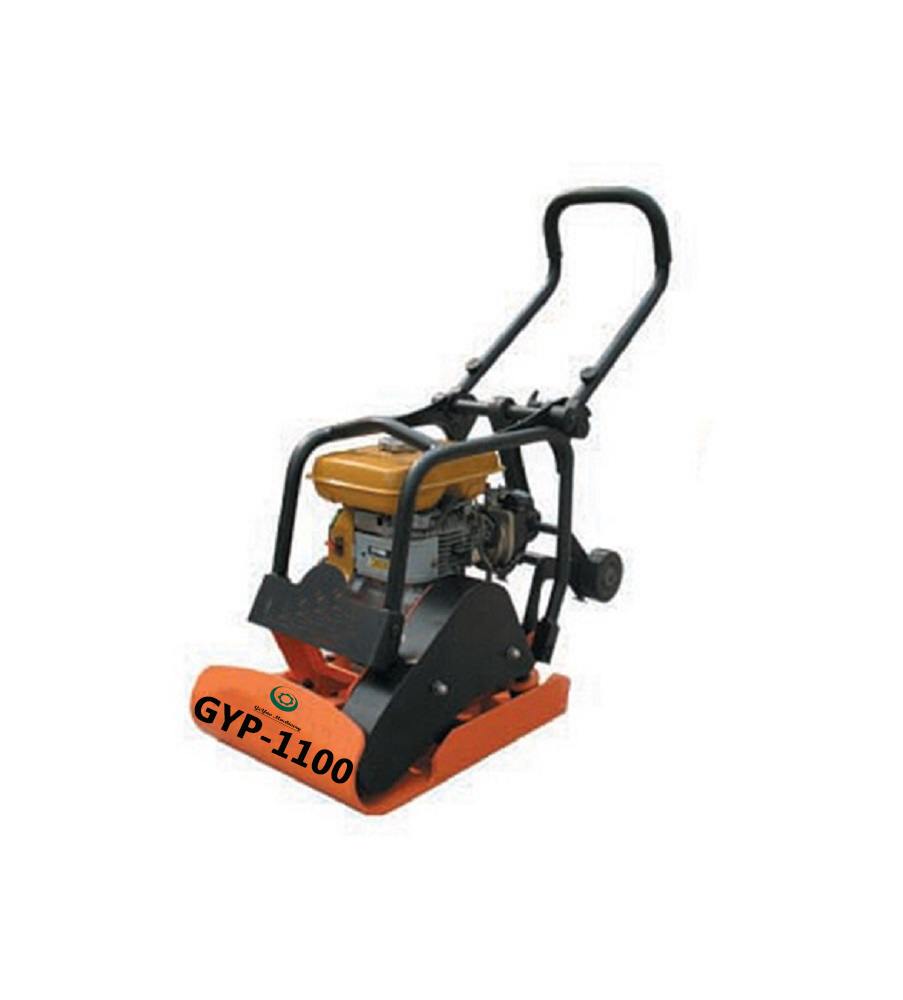

Model GYP-1100 Engine model Robin 5.0HP Frequency(Hz) 85(5100) Exciting force(KN) 11 Speed(m/min) 18-20 Tamping plate width(mm) 380 Handle height(mm) 920 Overall Dimension(L*W*H)(mm) 780*380*560 Shipping size(L*W*H)(mm) 860*460*660 Operating weight(kg) 80 Shipping weight(kg) 85
