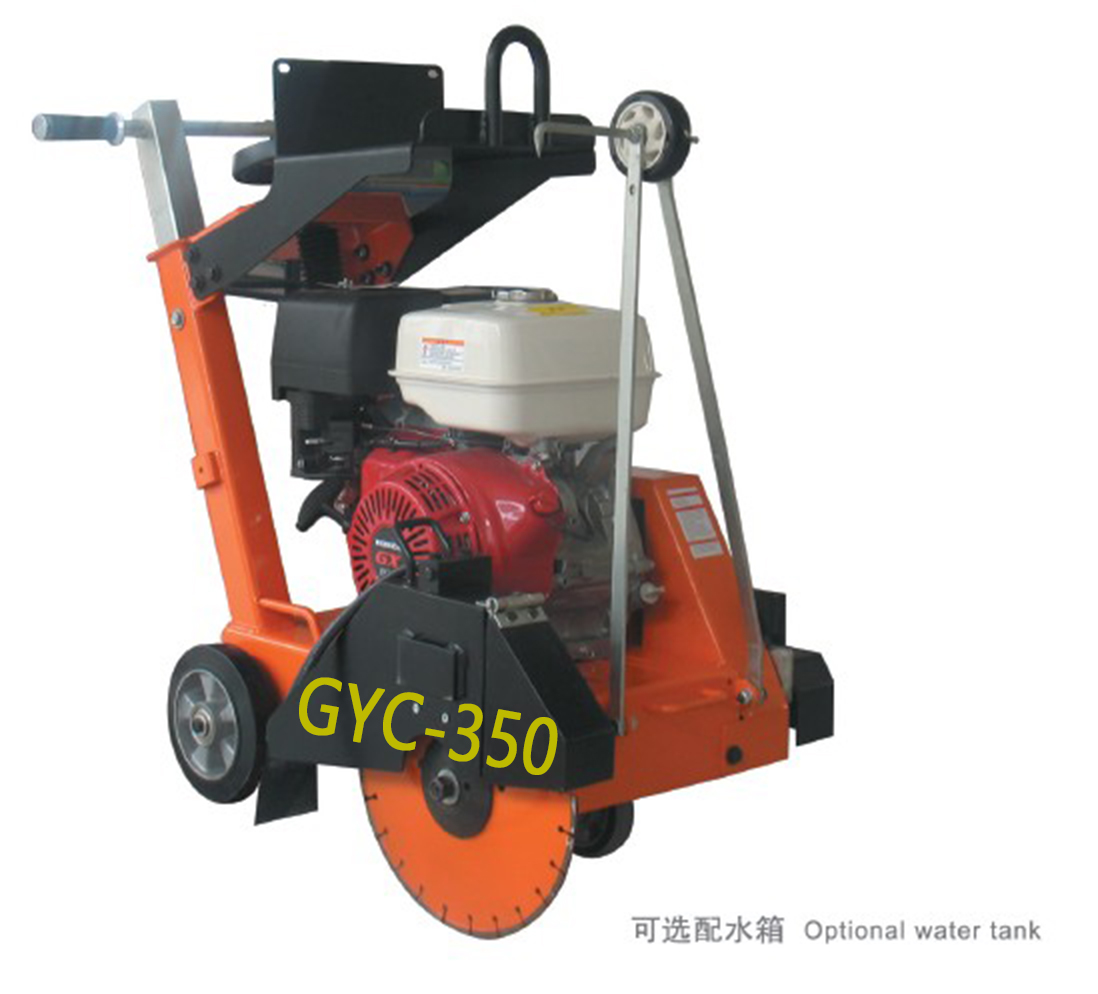

Road Cutting machine is used of cutting the expansion joint on concrete floor. Meanwhile, it can cut and groove
all standard manufactures of concrete, marble and granite.
Application Scope
1.A variety of concrete,asphalt pavement,plaza stretching cutting.
2.Cutting for concrete,asphalt pavement repair project.
3.All kinds of concrete cutting and grooving.
4.Other fields.
Features and Advantages
1.Hydraulic lift control cutting depth,shockproof rail’s height can be adjusted.
2.Honda 390/Kohler CH440 engine make high efficiency.
3.Forward guide bar to ensure the accuracy of the cutting direction
4.The reusable blade guard can exchange easily the cutting saw and user from harm.
5.Configuration of the pump connected with quick connectors,improves the working efficiency.
6.With the unique drip pipe system designed with pump,cooling water is sprayed to the blades
so as to lubricate and cool the blades,enhance the service of the blades.
7.Cutting depth indicator.
Specification
Model GYC-350 Engine model 发动机型号 Honda 390/Kohler CH440 The cutting depth(mm) 切割深度（毫米） 100 Blade diameter(mm) 刀片直径（毫米） 350 The rotation speed(rpm) 转速（转/分） 3600 Overall dimension(L*W*H)(mm) 外形尺寸（毫米） 880*650*1210 Shipping size(L*W*H)(mm) 包装尺寸（毫米） 930*770*1240 Operating weight(kg) 操作重量（千克） 112 Packing and shipping weight(kg) 包装运输重量（千克） 130
