Road Cutting machine is used of cutting the expansion joint on concrete floor.
Meanwhile, it can cut and groove all standard manufactures of concrete, marble and granite.
Application Scope
1.A variety of concrete,asphalt pavement,plaza stretching cutting.
2.Cutting for concrete,asphalt pavement repair project.
3.All kinds of concrete cutting and grooving.
4.Other fields.
Features and Advantages
1.It is a necessary machine in the construction of road. Super-rigid box frame ensures straight cuts while resisting warping and vibration-prolongs saw life; extends blade life. Height adjustment handle with comfortable grip handles,
2.Easy crank for raising/lowing cutting depth. Hinged front lift-up blade guard is designed to provide easy blade replacement; easy-remove, rustless poly water tank provides an optimum flow and volume of water to the blade.
3.It uses sheet diamond, which has the virtues of quick cutting speed, and even cut. Meanwhile, sheet diamond could cut the steal beams in concrete. It has simply, safety
construction, easy and flexible operations.
4.This type of design of cutting machine,low noise,high reliability
5.Using diamond film cutting,the cutting speed is quick,clean cut appearance,Along the guide rod,ensure accurate cutting direction.
6.Water spray system design with unique,cooling and lubricating film cutting,prolonging the service life of the blade.

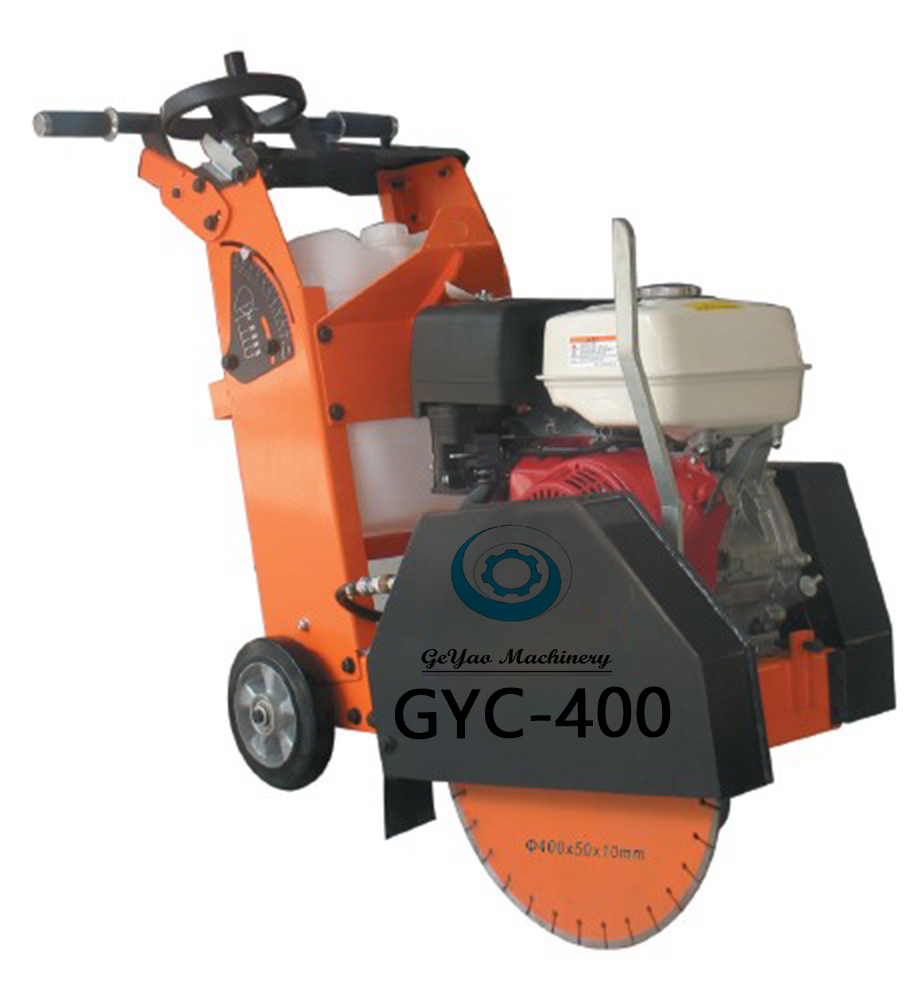

Model GYC-400 Engine model 发动机型号 Honda 390 The cutting depth(mm) 切割深度（毫米） 125-150 Blade diameter(mm) 刀片直径（毫米） 400-450 The rotation speed(rpm) 转速（转/分） 3600 Overall dimension(L*W*H)(mm) 外形尺寸（毫米） 1220*600*1000 Shipping size(L*W*H)(mm) 包装尺寸（毫米） 1230*610*1010 Operating weight(kg) 操作重量（千克） 106 Packing and shipping weight(kg) 包装运输重量（千克） 120
