Application Scope
1.A variety of concrete,asphalt pavement,plaza stretching cutting.
2.Cutting for concrete,asphalt pavement repair project.
3.All kinds of concrete cutting and grooving.
4.Other fields.
Features and Advantages
1.Hydraulic lift control cutting depth,shockproof rail’s height can be adjusted.
2.High efficiency.
3.Forward guide bar to ensure the accuracy of the cutting direction
4.The reusable blade guard can exchange easily the cutting saw and user from harm.
5.Configuration of the pump connected with quick connectors,improves the working efficiency.
6.With the unique drip pipe system designed with pump,cooling water is sprayed to the blades so as to lubricate and cool the blades,enhance the service of the blades.
7.Cutting depth indicator.
Specification

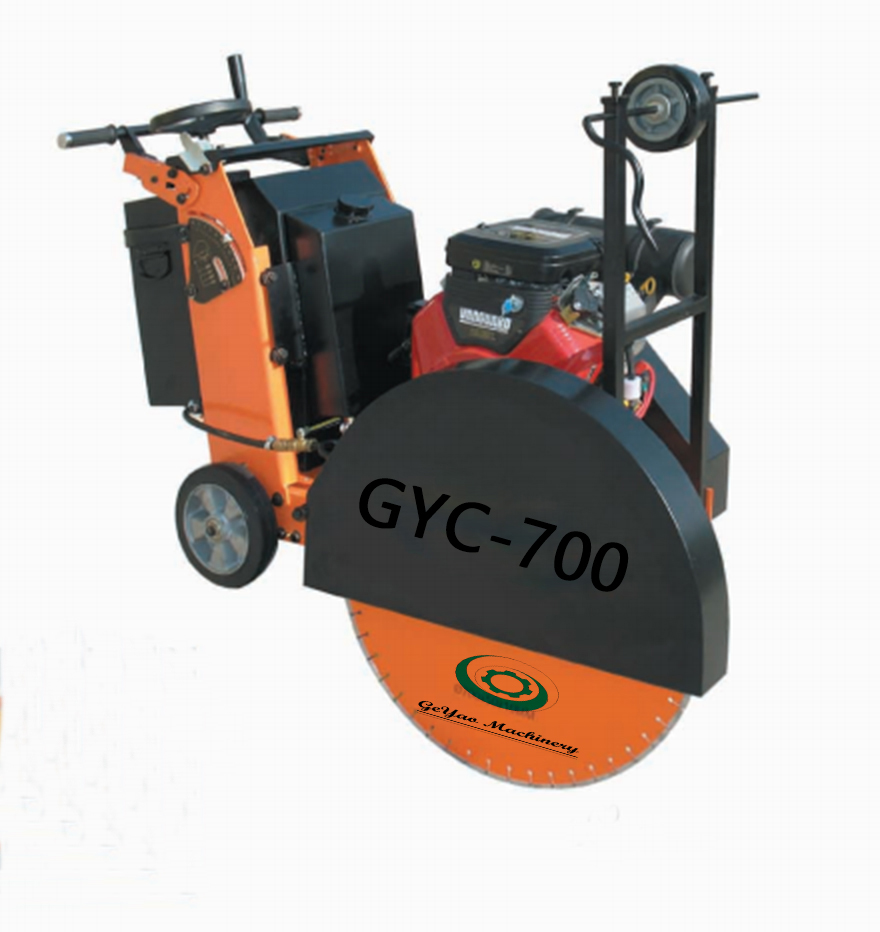

Model GYC-700 Engine model B&S 21HP The cutting depth(mm) 250 Blade diameter(mm) 700 The rotation speed(rpm) 3600 Overall dimension(L*W*H)(mm) 1250x770x990 Shipping size(L*W*H)(mm) 1310x830x1120 Operating weight(kg) 295 Packing and shipping weight(kg) 320
