Road Cutting machine is used of cutting the expansion joint on concrete floor. Meanwhile, it can cut and groove
all standard manufactures of concrete, marble and granite.
Application Scope
1.A variety of concrete,asphalt pavement,plaza stretching cutting.
2.Cutting for concrete,asphalt pavement repair project.
3.All kinds of concrete cutting and grooving.
4.Other fields.
Features and Advantages
1.Hydraulic lift control cutting depth,shockproof rail’s height can be adjusted.
2.KOHLER CH980/B&S 35HP engine make high efficiency.
3.Forward guide bar to ensure the accuracy of the cutting direction
4.The reusable blade guard can exchange easily the cutting saw and user from harm.
5.Configuration of the pump connected with quick connectors,improves the working efficiency.
6.With the unique drip pipe system designed with pump,cooling water is sprayed to the blades so as to lubricate and cool the blades,enhance the service of the blades.
7.Cutting depth indicator.
Specification

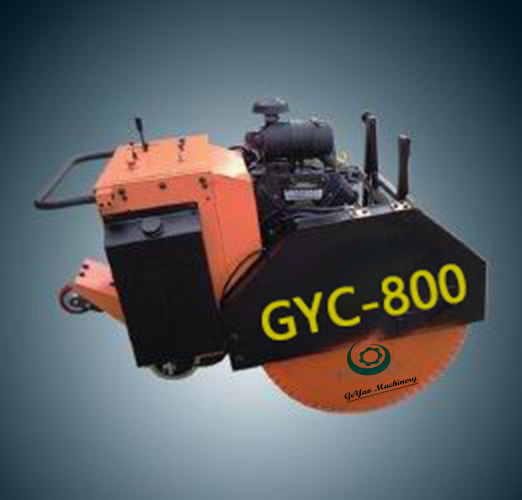

Model GYC-800 Engine model KOHLER CH980/B&S 35HP Fuel type Gasoline Fuel tank capacity(KL) 20 The cutting depth(mm) 300 Blade diameter(mm) 800 Blade speed 2000rpm Lifting system Electric hydraulic pump Outline dimension(L*W*H) (mm) 1620 x 800 x 1050 Transport packaging size (L*W*H)(mm) 1500 x 950 x 1200 Operating weight (kg) 506 Packing and shipping weight (kg) 546 The travel speed 22m/min Transmission pump Eaton Hydraulic pump
