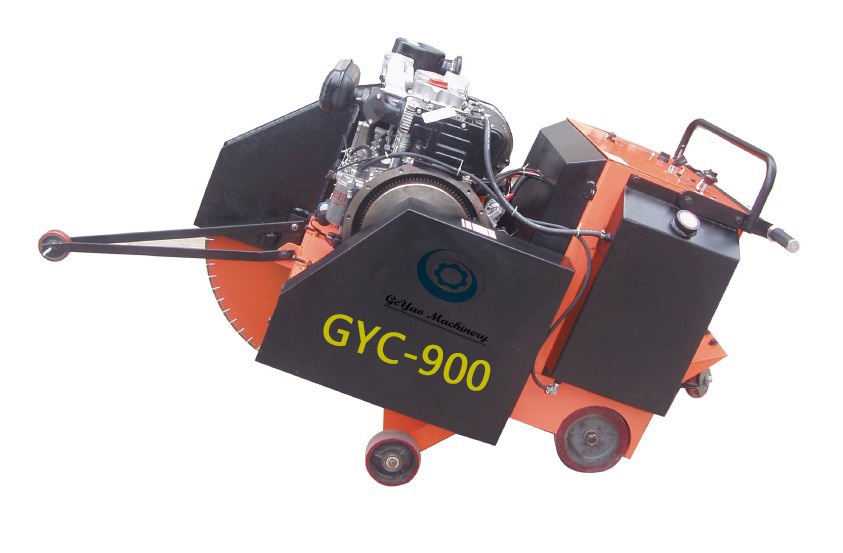

Road Cutting machine is used of cutting the expansion joint on concrete floor. Meanwhile, it can cut and groove
all standard manufactures of concrete, marble and granite.
Application Scope
1.A variety of concrete,asphalt pavement,plaza stretching cutting
2.Concrete,asphalt pavement repairs,cutting
3.All kinds of concrete cutting,grooving
Features and Advantages
1.Brand hydraulic pump for propulsion system,having automatic lift function ,reducing the operational burden .
2.Independent flow valve for control depth of cut,adjusting freely.
3.With the unique spraying system designed with water-tank,cooling water is sprayed to the blades so as to lubricate and cool the blades,enhances the services life of the blades.
4.500 hours blade spindle assembly maintenance cycles.
Specification
|
Model |
GYC-900 |
|
Engine model |
Briggs&stratton 35hp |
|
Fuel type |
Gasoline |
|
Fuel tank capacity(KL) |
20 |
|
The cutting depth(mm) |
370 |
|
Blade diameter(mm) |
914 |
|
Blade rotating speed |
1800rpm |
|
Blade raise/lower system |
Electric hydraulic pump |
|
Overall dimension(L*W*H) (mm) |
1620 x 800 x 1050 |
|
Shipping size (L*W*H)(mm) |
1500 x 950 x 1200 |
|
Operating weight (kg) |
476 |
|
Shipping weight (kg) |
516 |
|
Walking speed |
22m/min |
|
Transmission pump |
Brand Hydraulic pump |
