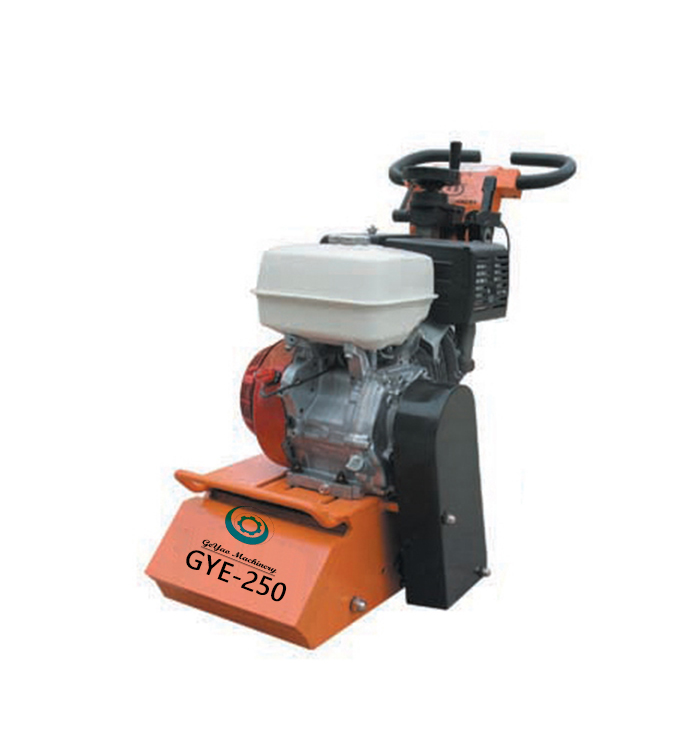

Road Scarifying Machine GYE-250



Application Scope

1.Concrete,asphalt,resin,wear-resisting ground to remove ring support

2.Roads,sidewalks,parking lot,yard,factory floor napped,slip

3.Remove the traffic line,the main land area of sewage plant



Features and Advantages

1.Shafts can be changed easily,which can be used for many purposes.

2.The adjustable handle simplifies operation and improve the degree of comfort

3.The control frame system is provided with self-locking function,The milling depth can be controlled freely and the operation becomes flexible.



Specification

Model

GYE-250

Engine Model

Honda GX390

Planner width

250

Milling drum assembly

Replaceable blade

The number of milling spindle

drum

6

Milling mode

Declination

Depth control

Adjustable

Maximum milling depth

(mm)

8-10

Efficiency(/h)

46-70

Overall Dimension(mm)

910*470*880

Shipping dimension(mm)



990*550*980

Operating weight(kg)

187

Shipping weight(kg)

192
