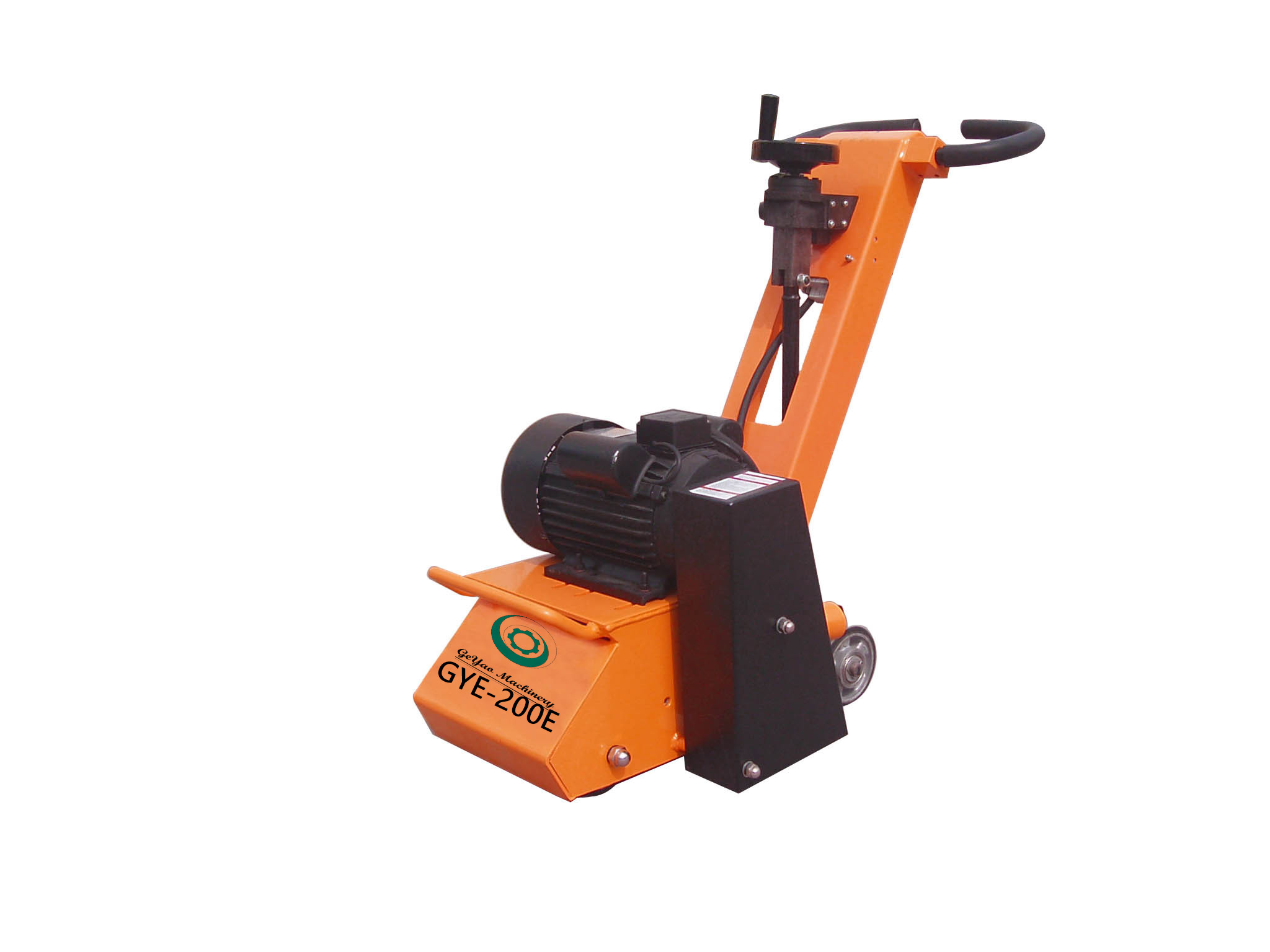

Road Scarifying Machine GYE-200E

Scarifying machine,also named floor scarifier/ floor scarifying/floor planner, It is used
for scarifying,roughening,planning,leveling,smoothing and Creating grooves in concrete surfaces
 and removes paint or coatings and to clean and prepare concrete surface prior to coating,re-coating
 and floor covering installation rugged sand casting and heavy gauge steel construction.



Application Scope

1.Concrete,asphalt,resin,wear-resisting ground to remove ring support

2.Roads,sidewalks,parking lot,yard,factory floor napped,slip

3.Remove the traffic line,the main land area of sewage plant



Featureas and Advantages

1.Shafts can be changed easily,which can be used for many purposes.

2.The adjustable handle simplifies operation and improve the degree of comfort

3.The control frame system is provided with self-locking function,The milling depth can be controlled freely and the operation becomes flexible.



Specification

Model

GYE-200E

Engine Model

3.5KW Electromotor

Planner width

200

Milling drum assembly

Replaceable blade

The number of milling spindle drum

6

Milling mode

Declination

Depth control

Adjustable

Maximum milling depth(mm)

3-5

Efficiency(/h)

33-46

Overall Dimension(mm)

820*490*810

Shipping dimension(mm)

900*570*910

Operating weight(kg)

116

Shipping weight(kg)

121
