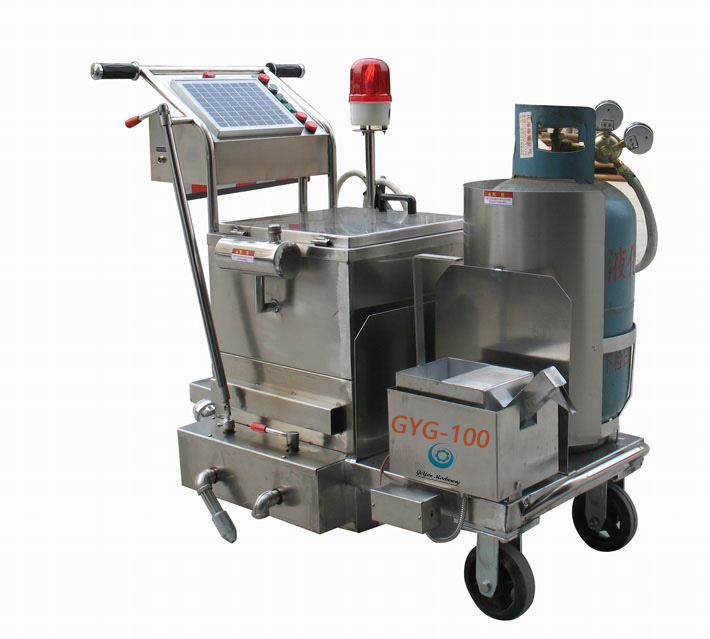

Crack Sealing Machine GYG-100



Application Scope

Crack sealing machine is mainly used for asphalt pavement, cement road surface, the surface of the ground crack.



Features and Advantages

1.Hand push, independent power, universal wheel, to adapt to the random crack filling and sewing

2.Mechanical combination screw extrusion heating device, temperature stability, pressure type, pumping irrigation sewing quality is good.

3.Supplemented by exhaust gas, electrical heating means, preheat time is short, don't burn out irrigation sewing the material.

4.Small clutch gear transmission device, with Honda engine, good durability, suitable for class stand

5.Fuel injection using metal hose, the contact gap filling filling material, and good follow-up

Specification

Model

GYG-100

Heating model

LPG

Heating control

Electronic ignition burner gas+++ heat insulation box

Temperature control

The appearance of type temperature sensor 180 degrees,a temperature control alarm

Discharge control

Anti blocking control valve

Pouring velocity

0-20m/s(adjustable)

Material science

Stainless steel

Dimension(mm)

1200*700*1200

Weight(kg)

75kg,exclude the LPG gas

Way of walking

Round

The configuration of

 small heater

A small crack can be used when the heater
