Features and Advantages

1.Forged Super alloy steel----quenched and tempered
2.Suitable for G100 chain.
3.25% stronger than G80.
4.Individually proof test at 2.5times working load limit.
5.Fatigue tested at 1.5 times working load limit for 20000 cycles
6.Breakage testing will be done strictly for each batch code at random
7.100% magnaflux crack detection
8.Surface finish：Powder plastified
9.All main link is forged and sub link is welded.
10.According to EN1677-4.

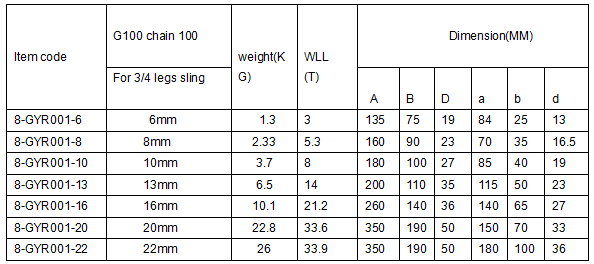

Specification

Ultimate loading is 4 times of the working load lim

All sizes:There will be pressing flat only on the customer’s request.

The pressing flat is for use with OMEGA LINK.
