Features and Advantages
1.Super alloy steel----quenched and tempered
2.Suitable for G100 chain.
3.25% stronger than G80.
4.Individually proof test at 2.5times working load limit.
5.Fatigue tested at 1.5 times working load limit for 20000 cycles
6.Breakage testing will be done strictly for each batch code at random
7.100% magnaflux crack detection 100%
8.Surface finish：Powder plastified
9.All sizes master link are forged.

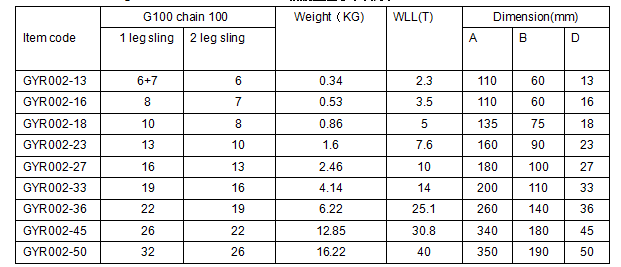

Specification
Ultimate loading is 4 times of the working load limit
GYR002-13 TO GYR002-36:There will be pressing flat only on the customer’s request.
GYR002-45 TO GYR002-50:There will be no pressing flat: GYR002-45 到 GYR002-50
The pressing flat is for use with OMEGA LINK.
