Features and Advantages
1.Super alloy steel----quenched and tempered
2.Individually proof test at 2.5times working load limit.
3.Breakage test and fatigue test will be done for each batch product
4.100% magnaflux crack detection 100%
5.Surface finish:Powder plastified
6.Suitable for 1 or 2 legs G80 chain sling as per EN818-4
7.Blue area product are welded,yellow area product are forged.

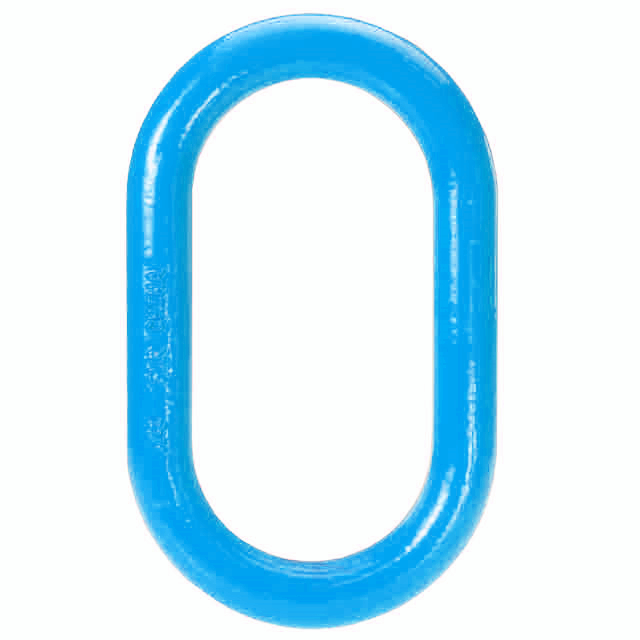

GYR003 G80 European type Master link without flat (DIN5688)
GYR003 G80 European type Master link with flat

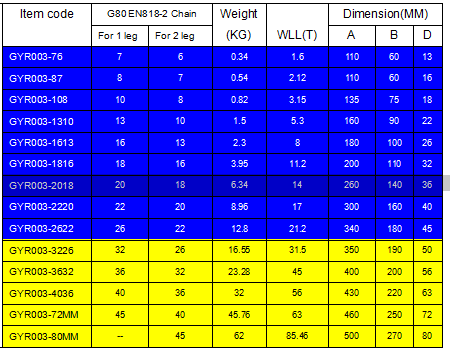

Specification
Ultimate loading is 4 times of the working load limit ,WLL BASED ON 0℃-45℃ GYR003-76 TO GYR003-2220 ,There will be pressing flat only on the customer’s request.
GYR003-2622 TO GYR003-80MM,There is no pressing flat.The pressing flat for use with G80 OMEGA link.
For use with wire rope sling ,refer to DIN3088 standard.
