Features and Advantages
1.Super alloy steel----quenched and tempered
2.Individually proof test at 2.5times working load limit.
3.Breakage test and fatigue test will be done for each batch product
4.100% magnaflux crack detection 100%
5.Surface finish：Powder plastified
6.Suitable for 1 or 2 legs G80 chain sling
7.Blue area products are welded and yellow area products are forged.
8.Bigger inner length and bigger inner width.

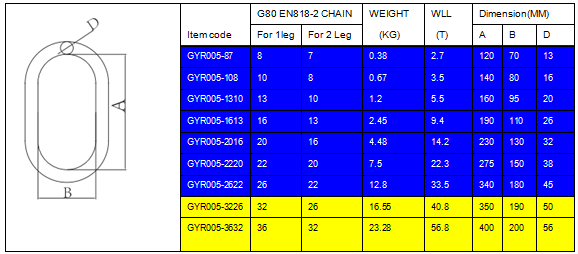

Specification
Ultimate loading is 4 times of the working load limit
GYR005-87 TO GYR005-2016 :There will be pressing flat only on the customer’s request.
GYR005-2220 TO GYR005-3632:There is no pressing flat.
The pressing flat is for using with G80 OMEGA LINK,just as the below picture.
