Features and Advantages
1.Super alloy steel----quenched and tempered
2.Individually proof test at 2.5times working load limit.
3.Breakage test and fatigue test will be done for each batch product
4.100% magnaflux crack detection 100%
5.Surface finish：Powder plastified
6.Suitable for 3 or 4 legs G80 chain sling as per EN818-4
7.Production and checking standard: EN1677-4(Supersedes DIN56883)

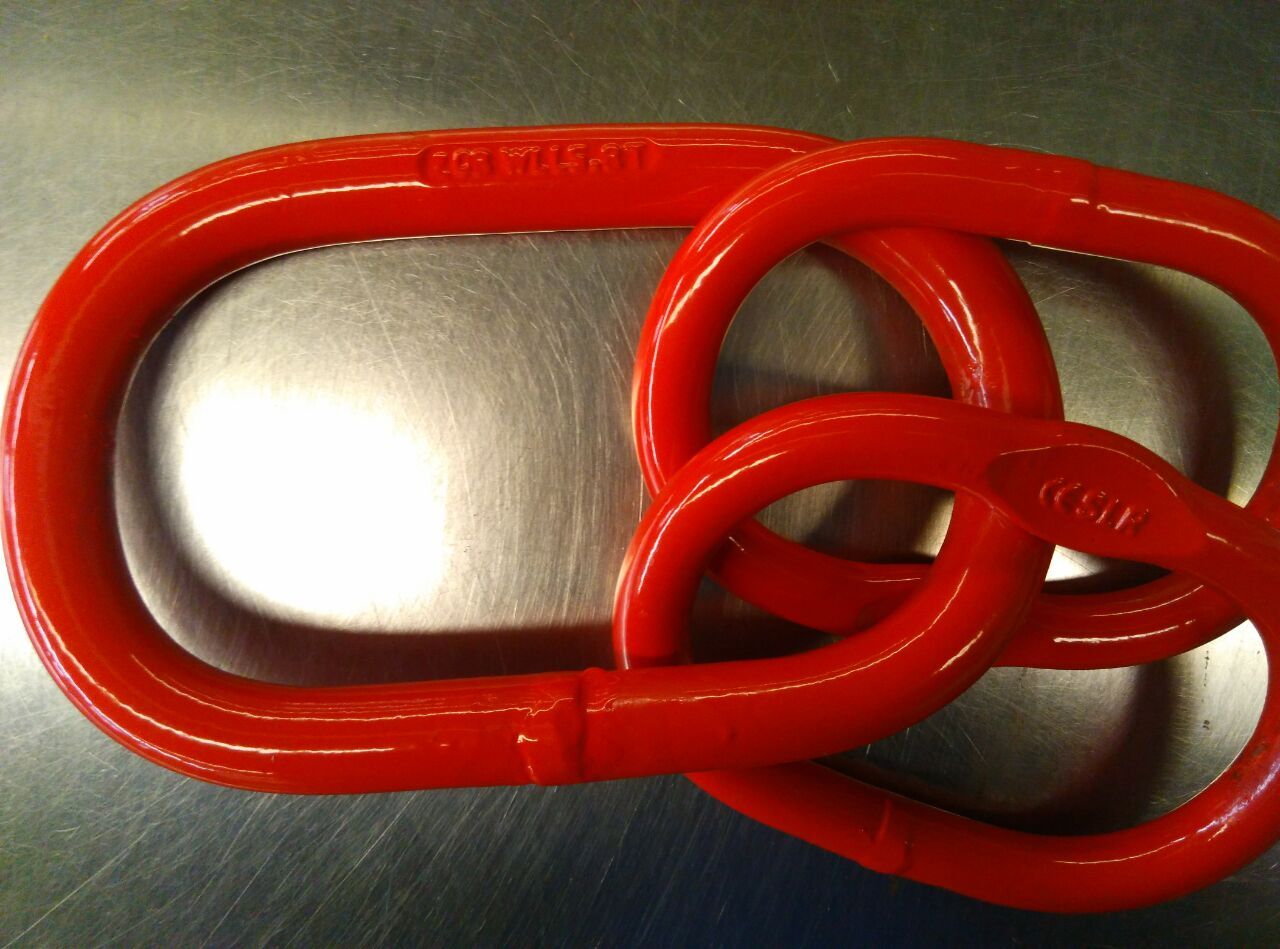

8.Blue area product,main link and sub links are welded,yellow area products,main link is forged and sub link is welded.

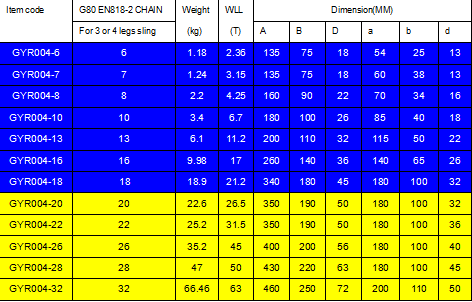

Specification
Ultimate loading is 4 times of the working load limit
WLL BASED ON 0℃-45℃
GYR004-6 TO GYR004-20 :There will be pressing flat only on the customer’s request.
GYR004-22 TO GYR004-32 :There is no pressing flat.
The pressing flat is for using with G80 OMEGA LINK
For use with wire rope sling ,refer to DIN3088 standard.
For use with synthetic sling,refer to EN1492-1 standard.
