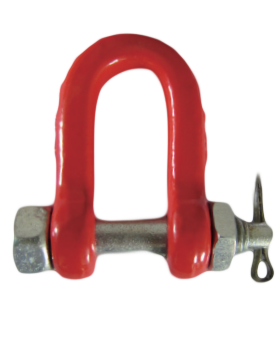

G80 Bolt Type Dee Shackle GYR162



                          Features and Advantages



                1.Forged super alloy steel-quenched and tempered.

                            2.Suitable for EN818-2 G80 chain

                            3.Individually proof test at 2.5 times working load limit

                            4.Fatigue tested at 1.5 times working load limit for 20000cycles.

                            5.Breakage test will be done strictly for each batch product.

                            6.100% magnaflux crack detection 100%

                            7.All load pins are 100% individually inspected and tested.

                            8.Surface finishPowder plastified

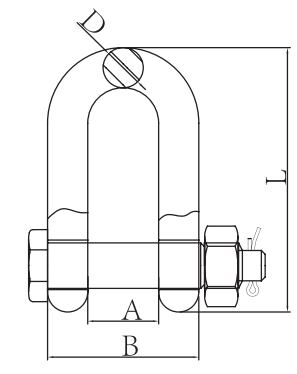

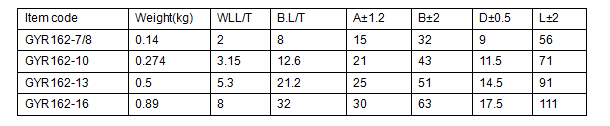

                            Specification





               Ultimate load is 4 times of the working load limit
