Location:Home >> Our Products >> Lifting&rigging >> Hooks

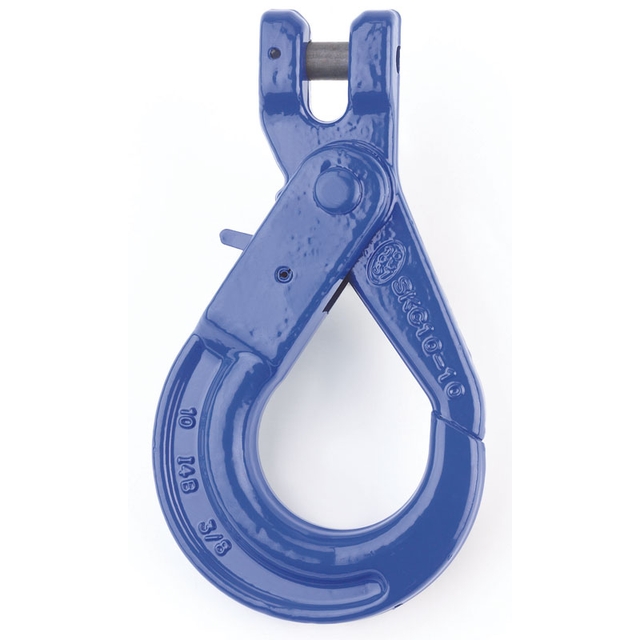

G100 Clevis Self-locking Hook GYR018



                  Features

                    1.Super alloy steel----quenched and tempered

                    2.Suitable for G100 chain.

                    3.25% stronger than G80.

                    4.Individually proof test at 2.5times working load limit.

                    5.Fatigue tested at 1.5 times working load limit for 20000 cycles

                    6.Breakage testing will be done strictly for each batch code at random .

           7.100% magnaflux crack detection 100%

           8.Surface finishPowder plastified

           9.Positive lock latch is selflocking when hook is loaded.

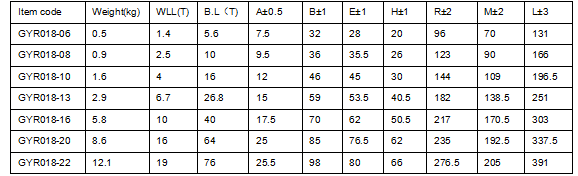

                    Specification



                   Ultimate loading is 4 times of the working load limit

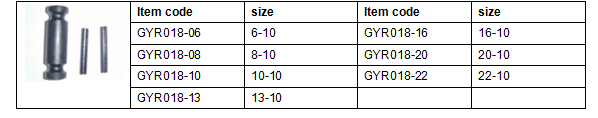

                   GYR018 Spare Parts
