G80 Eye Shortening Grab Hook With Safety Pin GYR030



                                   Features

                                      1.Forged super alloy steel-quenched and tempered.

                                      2.Suitable for EN818-2 G80 chain.

                                      3.Individually proof test at 2.5 times working load limit.

                                      4.Fatigue test at 1.5 times working load limit for 20000 cycles

                                      5.Breakage test will be done for each batch product strictly at random.

                                      6.100% magnaflux crack detection 100%

                                      7.Surface finishPowder plastified

                                      8.With safety pin.

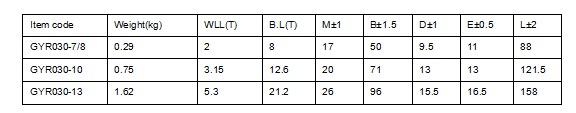

                                      Specification



                     Ultimate load is 4 times of the working load limit.above working load limit is based onside pull.
