Features
1.Hot Dipped Galvanized Steel
2.Weather Resistant
3.In-line or Straight Pull Applications

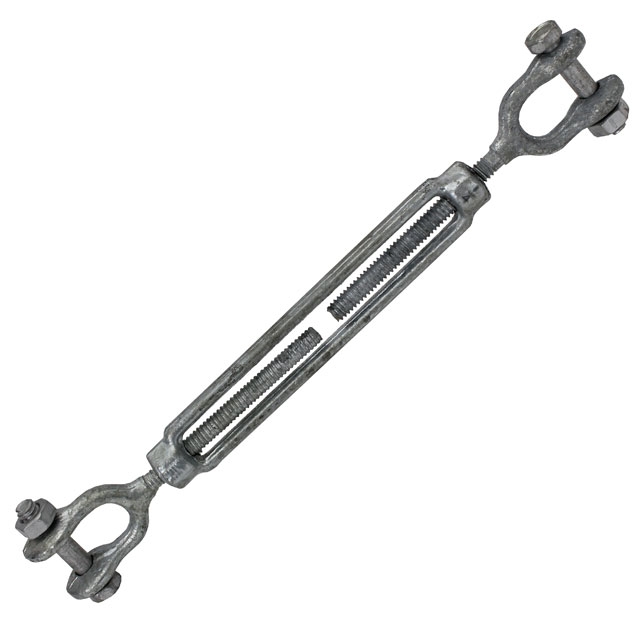

4.Feature a jaw on each end which is fitted with a nut & bolt or a pin & cotter pin assembly.
Specification
Size
Working Load Limit(lbs)
1/4"x4"
500
5/16"x4-1/2"
800
3/8"x6"
1200
1/2" x 6"
2200
1/2" x 9"
2200
1/2" x 12"
2200
5/8" x 6"
3500
5/8" x 9"
3500
5/8" x 12"
3500
3/4" x 6"
5200
3/4" x 9"
5200
3/4" x 12"
5200
3/4" x 18"
5200
7/8" x 12"
7200
7/8" x 18"
7200
1" x 12"
10000
1" x 18"
10000
1" x 24"
10000
1-1/4" x 12"
15200
1-1/4" x 18"
15200
1-1/4" x 24"
15200
1-1/2" x 18"
21400
1-1/2" x 24"
21400
1-3/4" x 18"
28000
2" x 24"
37000
