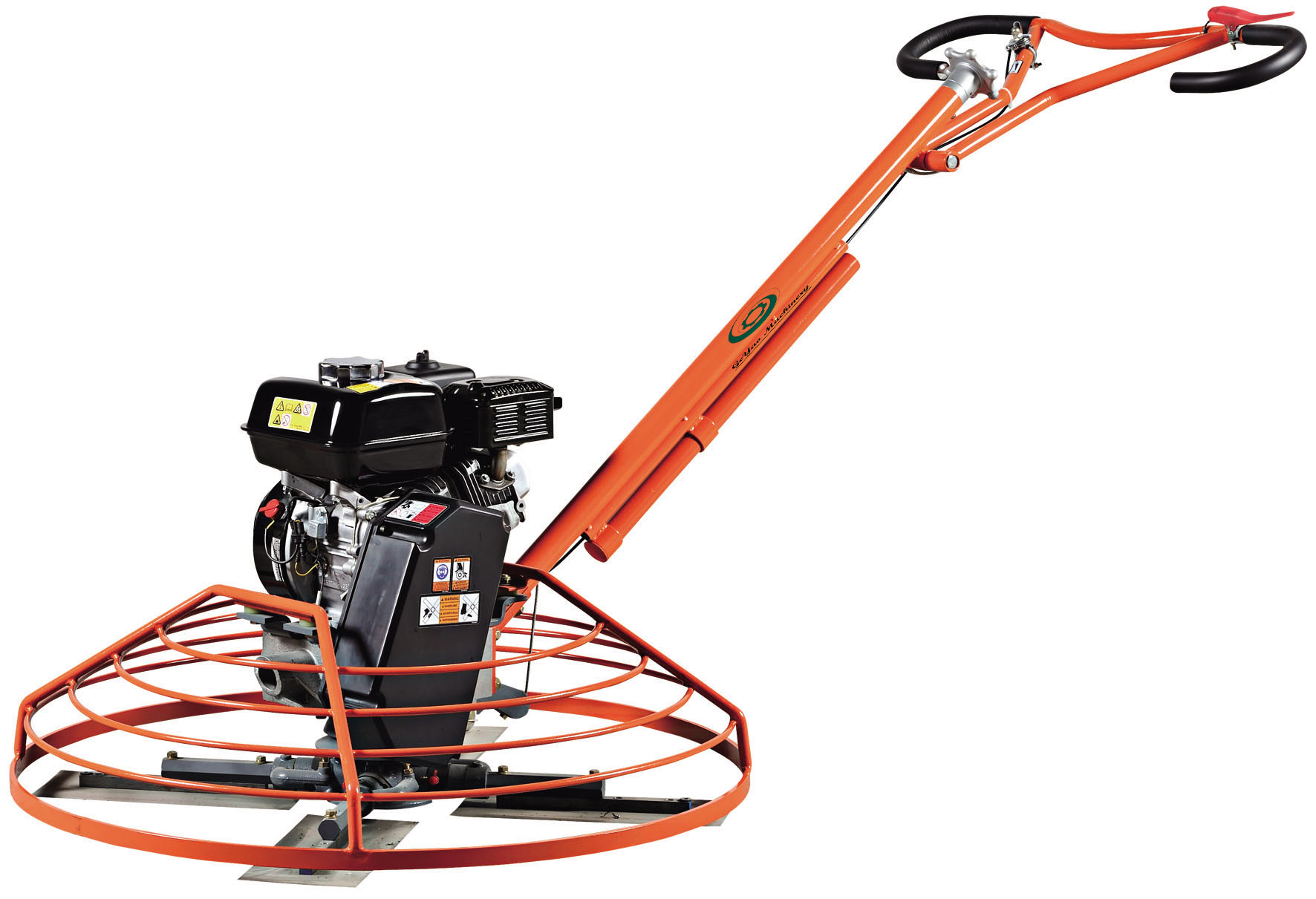

Walk-behind Power Trowel GYP-436













  Features

             1.Over-built cast aluminum gearbox assures long service life
             2.Heavy-weight design to assure a superior finis
             3.Heavy-duty bronze worm gear for extra long-life
             4.Perfectly balanced design for easy and comfortable operation
             5.Height adjustable handle, assures operator comfort & easy control

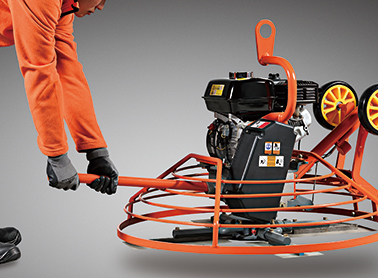

             6.Lifting tube as standard feature allows trowel to be transported on the job-site with only two people
             7.Dead-man switch, shuts the engine down in the event of the operator loosing control of the unit


             Options

              Lifting Hook

                 Throttle Control

                 Long Handle

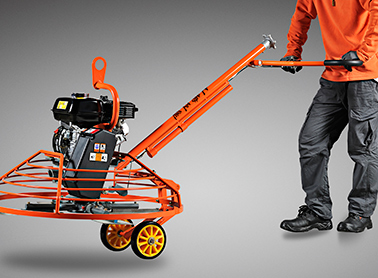

                 Trolley Wheel



                 Technical Specification



 Model  GYP-436-1  GYP-436-2  GYP-436-3
 Engine Type  Chinese Petrol Engine  Robin EX17  Honda GX160
 Power KW(HP)  4.8(6.5)  4.2(5.7)  4.0(5.5)
 Weight KG(LBS)  81(178)  80(176)  80(176)
 Blade Speed RPM    70-150
 Rotor Dia.Cm(inch)    92(36)
