Features:
1.Type: mechanical-hydraulic driving style;
2.Engine: Honda GX690, electric start 3600 / 24HP horsepower;
3.Battery circuit: all cars equipped with 12V DC voltage generator 18 amps;
4.Optional laser system: the United States or Germany MOBA + Leica Trimble;
5.Vibration Control: US INDCOM company imported high-speed hydraulic motor;
6.Steering: Hydraulic power steering control;
7.Drive system: the original brand-name hydraulic hydraulic drive motor;
8.Walking System: four-wheel drive, closed system, manual adjustment;
9.Standard tires: 80/100 × 21 motorcycle tire puncture,
Specification
Model

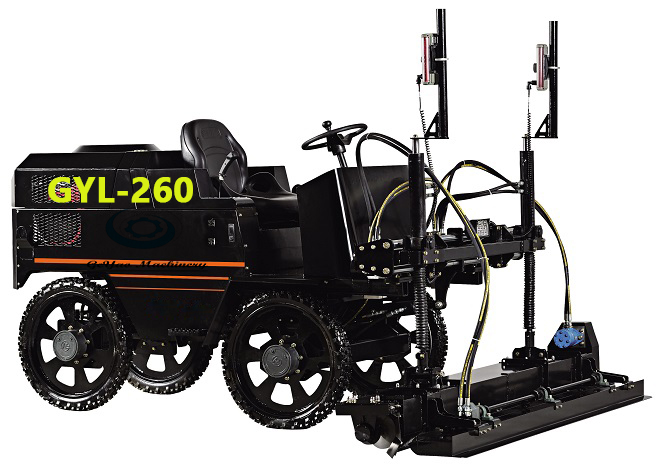

GYL-R260C
GYL-R260
Engine Type
Honda GX690
Honda GX690
Power Kw(hp)
16.5(22.1)
16.5(22.1)
Weight kg(lbs)
1150(2531)
1150(2531)
Oil Tank Capacity L
45
45
Screed Head Width mm
2520
2520
Levelling System
Screed head fixed
Screed head fixed
Self Propel
Standard
Standard
Electrical Starter
Standard
Standard
Auto Level
Standard
Standard
Laser System
German MOBA+Leica
German MOBA+Leica
Drive Unit
Hydraulic Motor
Hydraulic Motor
Main Pump
French POCLAIN HYDRAULICS axial piston pump
French POCLAIN HYDRAULICS axial piston pump
Master Valve
US HYDRAFORCE main control valve
US HYDRAFORCE main control valve
Vibration Control System
US INDCOM high-speed hydraulic motor
US INDCOM high-speed hydraulic motor
