It is important to ensure wire rope clips are installed properly. Incorrect installation
can reduce the working load limit by 40%. Below are general guidelines for installing wire rope clips.

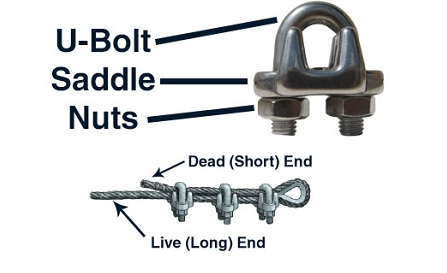

Parts of a Wire Rope Clip & Assembly
Clip Installation Diagram
Below is a diagram showing proper clip installation it is imperative that you
install the saddle on the live end of the wire rope. An easy to remember saying to
help remember proper clip installation is:
NEVER SADDLE A DEAD
